测量和控制电子设备
我们先进的电子产品将可靠性与卓越的用户友好性结合在一起。
测量和控制电子设备是保障测试系统效率的关键。疲劳测试的高性能解决方案包括我们核心的TestMenager和用于管理和配置我们产品的“StepLab制造”软件TestCenter。
精确
技术全面
可扩展
可同步
信息
|

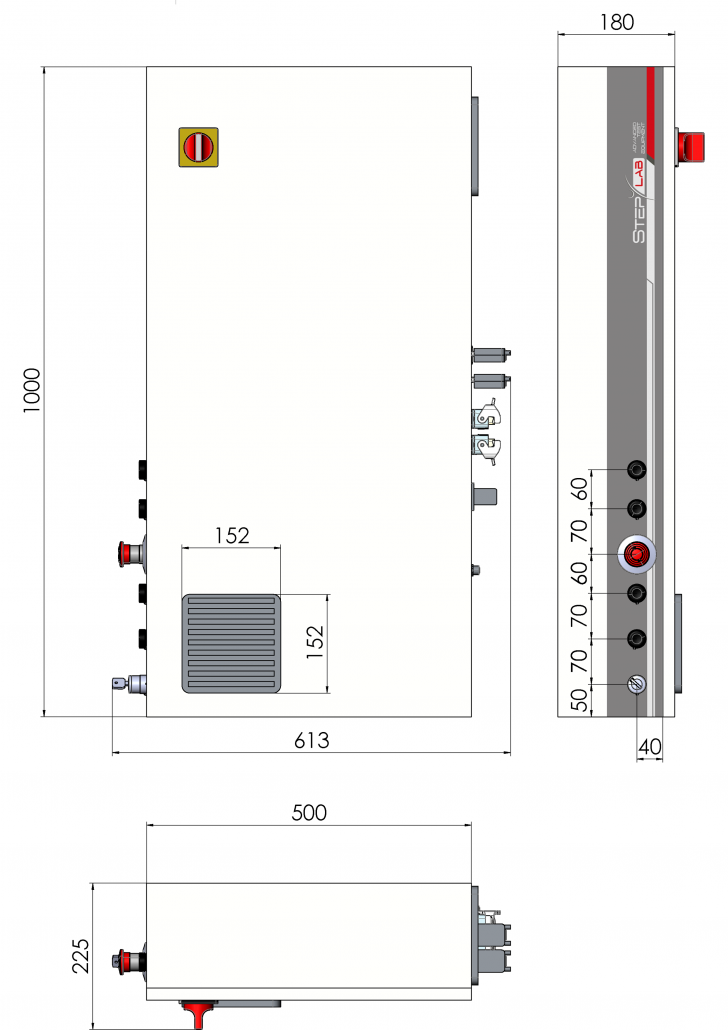

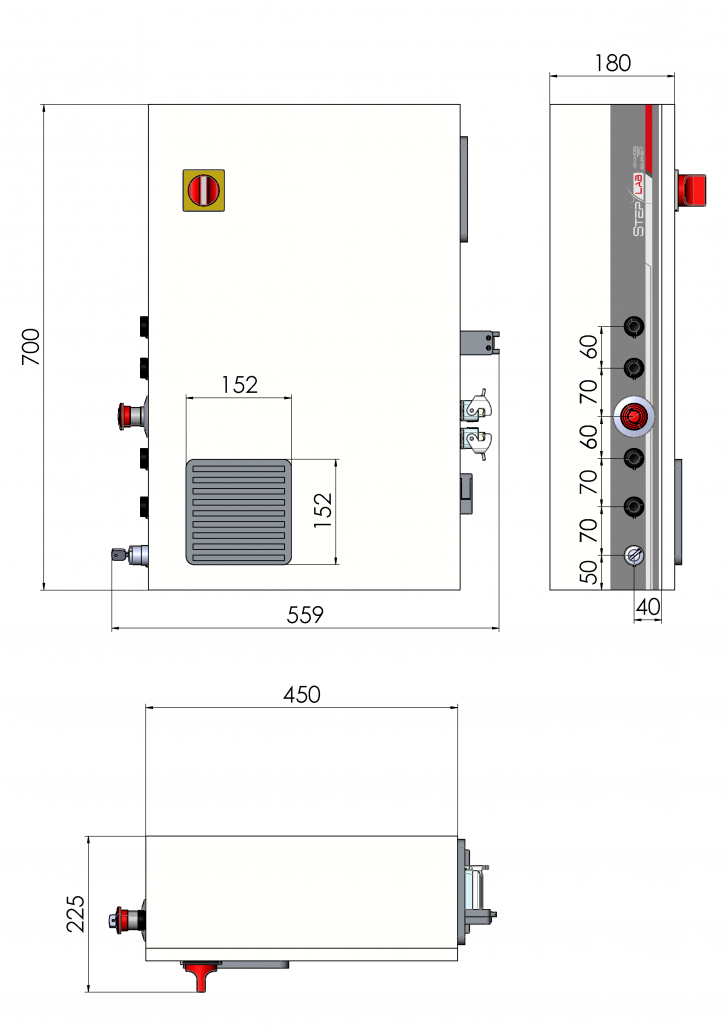

Electrical cabinet EA05 | |
|
Sample rate (khz) |
1,2,4 |
|
Acquisition rate (khz) |
1,2,4 |
|
Managedo power (kVa) |
4,5 |
|
Multi-axial Y/N |
N |
|
Max nr of axis |
1 |
|
Electrical cabinet EA015 | |
|
Sample rate (khz) |
1,2,4,8 |
|
Acquisition rate (khz) |
1,2,4,8 |
|
Managedo power (kVa) |
4,5 |
|
Multi-axial Y/N |
N |
|
Max nr of axis |
1 |
|
Electrical cabinet EA050 | |
|
Sample rate (khz) |
1,2,4,8 |
|
Acquisition rate (khz) |
1,2,4,8 |
|
Managedo power (kVa) |
8,5 |
|
Multi-axial Y/N |
N |
|
Max nr of axis |
1 |
|

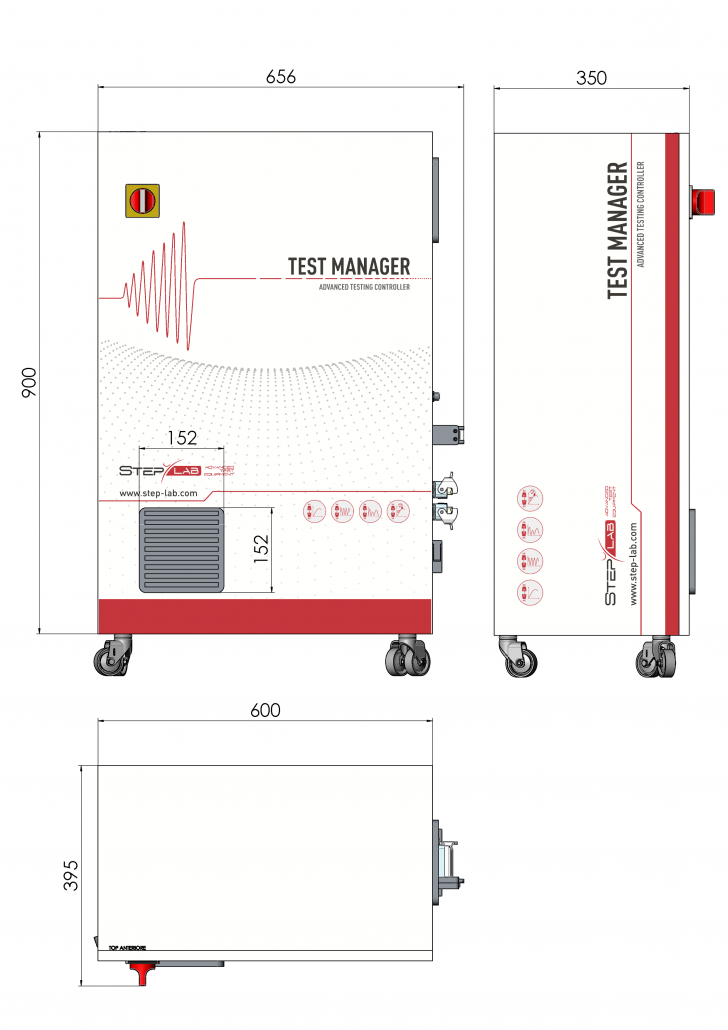

Floor standing switchboard 900×600 | |
|
Sample rate (khz) |
1,2,4,8,16 |
|
Acquisition rate (khz) |
1,2,4,8,16 |
|
Managedo power (kVa) |
17,5 |
|
Multi-axial Y/N |
Y |
|
Max nr of axis |
4 |
|
Floor standing switchboard 1400×900 | |
|
Sample rate (khz) |
1,2,4,8,16 |
|
Acquisition rate (khz) |
1,2,4,8,16 |
|
Managedo power (kVa) |
51 |
|
Multi-axial Y/N |
Y |
|
Max nr of axis |
4 |
|
Floor standing switchboard 1400×1200 | |
|
Sample rate (khz) |
1,2,4,8,16 |
|
Acquisition rate (khz) |
1,2,4,8,16 |
|
Managedo power (kVa) |
100 |
|
Multi-axial Y/N |
Y |
|
Max nr of axis |
4 |
|
Floor standing switchboard 1400×1200 | |
|
Sample rate (khz) |
1,2,4,8,16 |
|
Acquisition rate (khz) |
1,2,4,8,16 |
|
Managedo power (kVa) |
100 |
|
Multi-axial Y/N |
Y |
|
Max nr of axis |
4 |
