电子动态作动器

线性电机式电子动态作动器

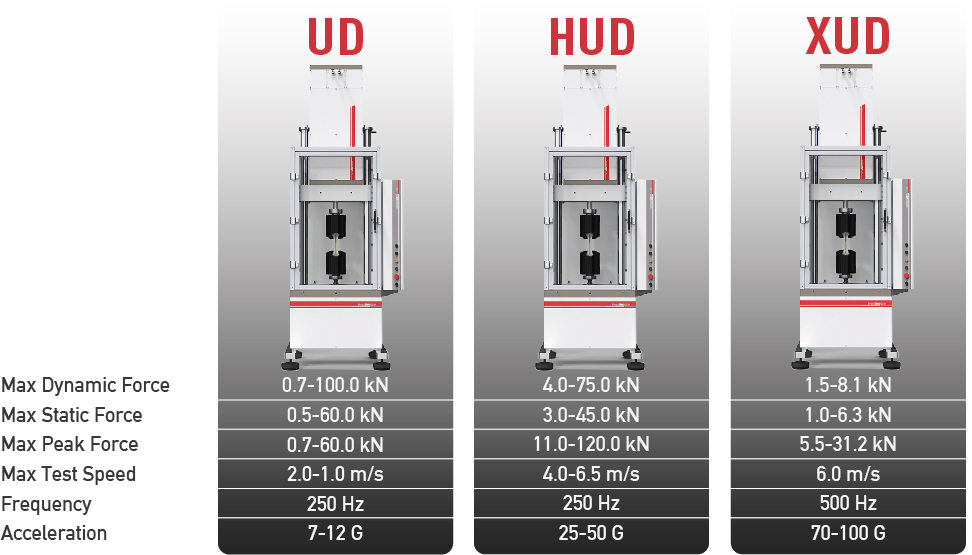

利用在电子作动器开发方面的专业优势，STEP Lab 研发了一系列适用于极高动态应用的产品（如汽车和摩托车的减震器等）。这一系列新产品均基于直线电机技术，分为两个系列：HUD和XUD。HUD适用于耐久性试验，XUD适用于高加速度的短时试验。
按照我们的传统，这些机器具有电子试验机固有的优势。

产品彩页

Metric

UD SERIES	UNITS	UD01	UD02	UD04	UD08	UD012	UD025	UD030	UD050	UD100
Max. Dynamic Force	kN	0.70	2.40	4.00	8.00	12.00	25.00	30.00	50.00	100.00
Max. Static Force	kN	0.54	1.76	2.90	5.80	8.70	14.50	19.20	29.00	58.00
Max. Test Speed	m/s	2.00	2.00	2.00	2.00	2.00	1.00	2.00	1.00	1.00
Max. Test Frequency	Hz	250*	250*	250*	250*	250*	100*	250*	100*	100*
Standard Stroke	mm	80	100	80	80	80	85	80	85	85
Working Temperature	°C	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30	5-30
Cooling		Air	Air	Air	Air	Air	Water closed circuit	Water closed circuit	Water closed circuit	Water closed circuit
Facility Requirement		3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V

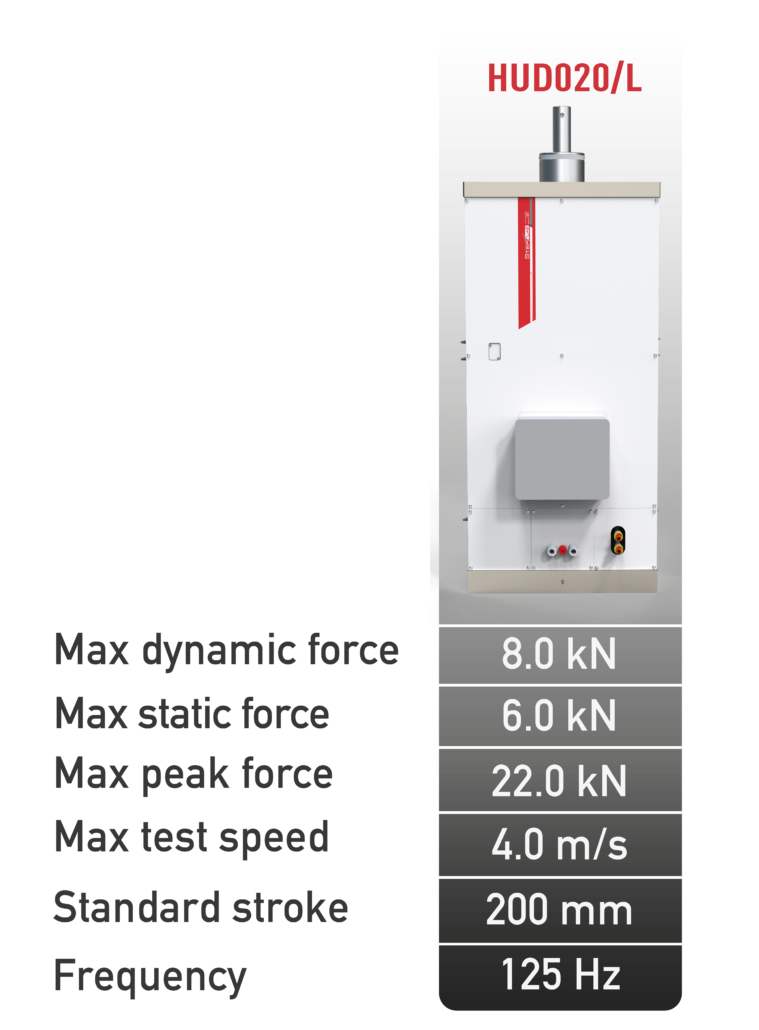

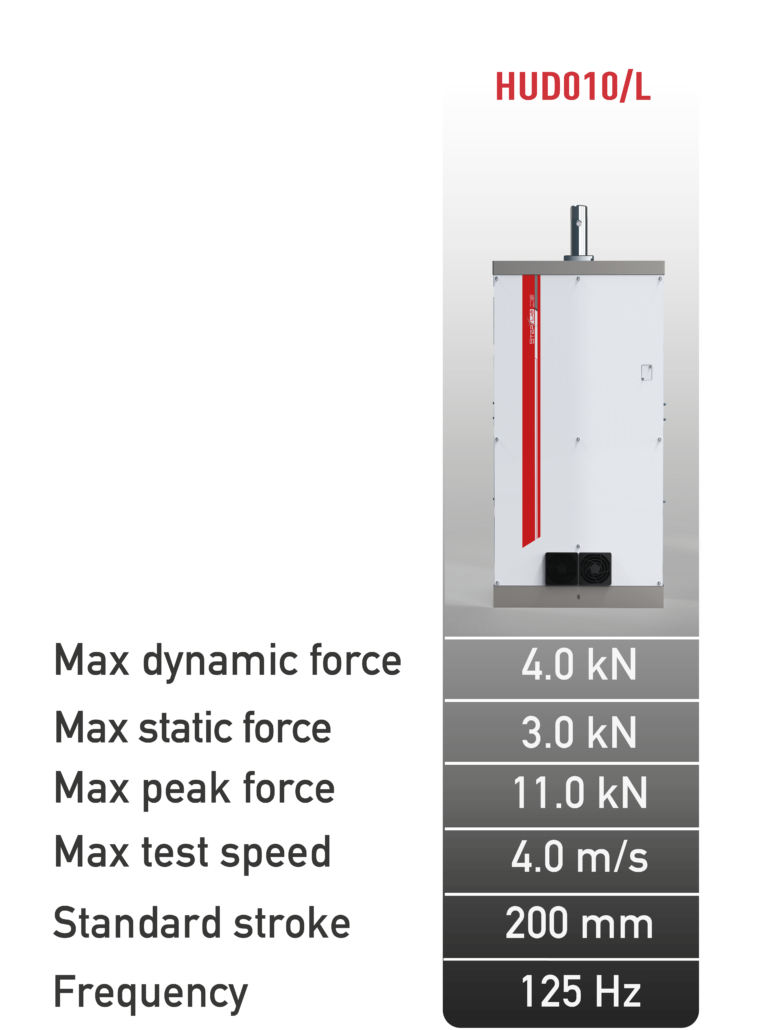

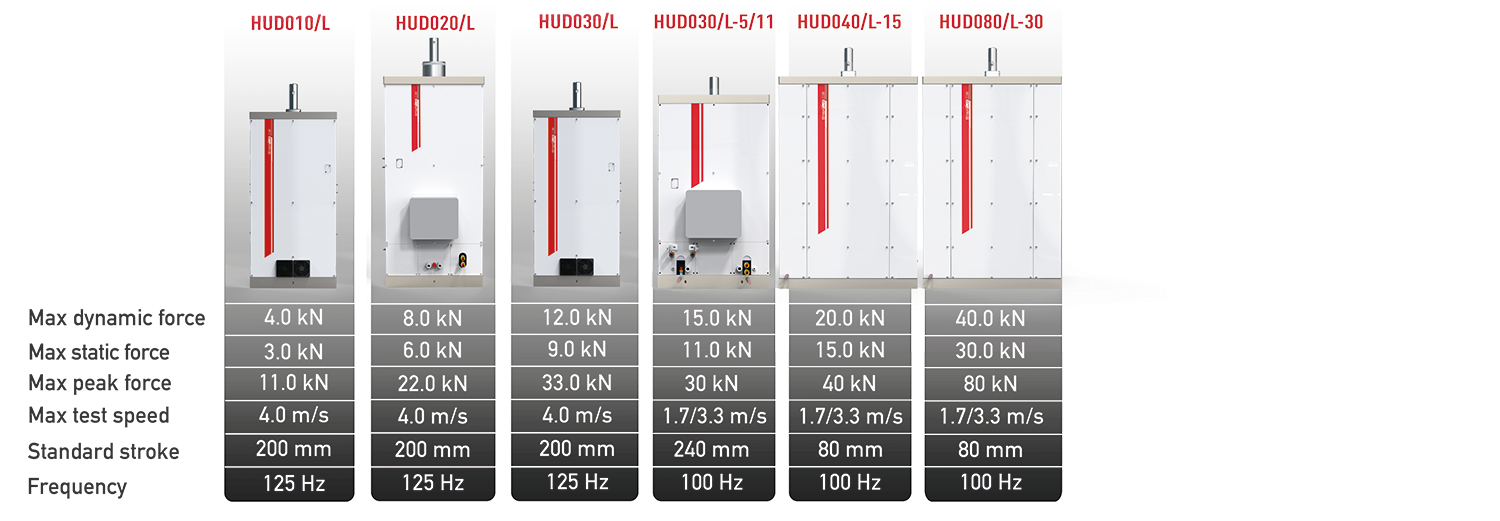

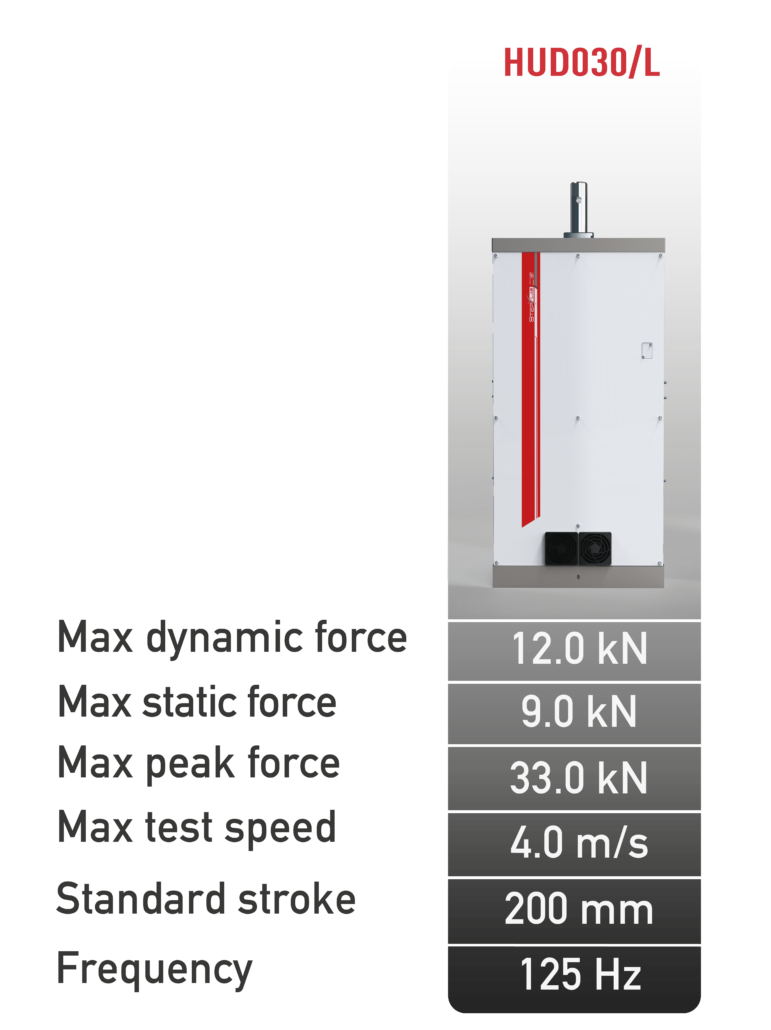

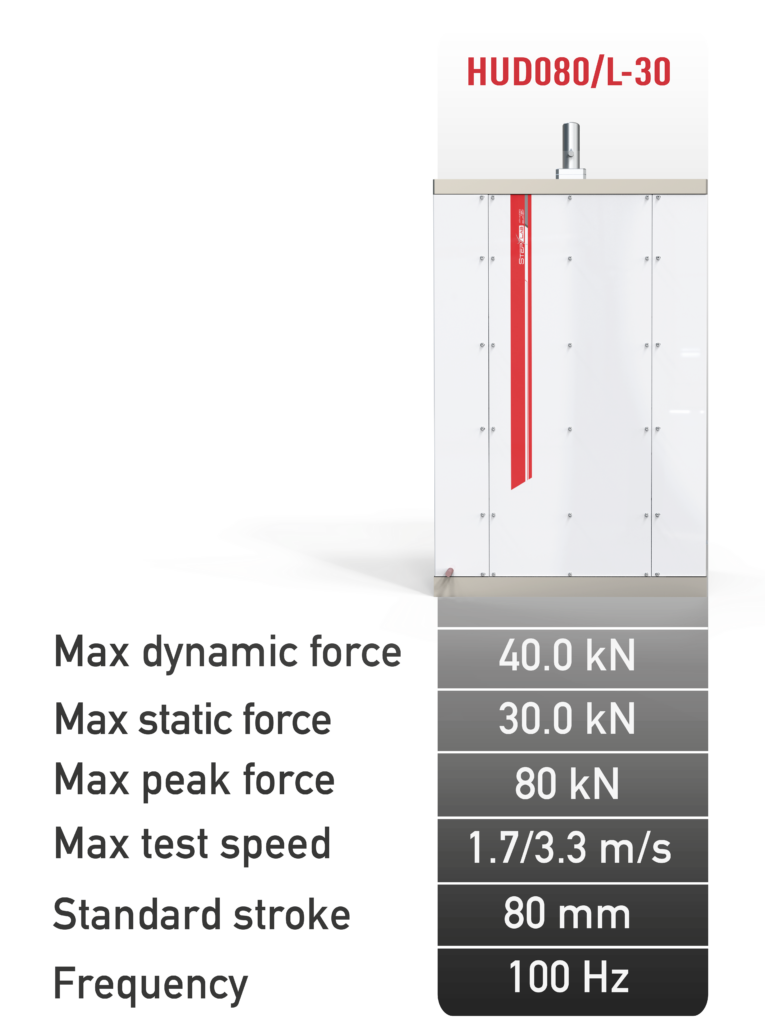

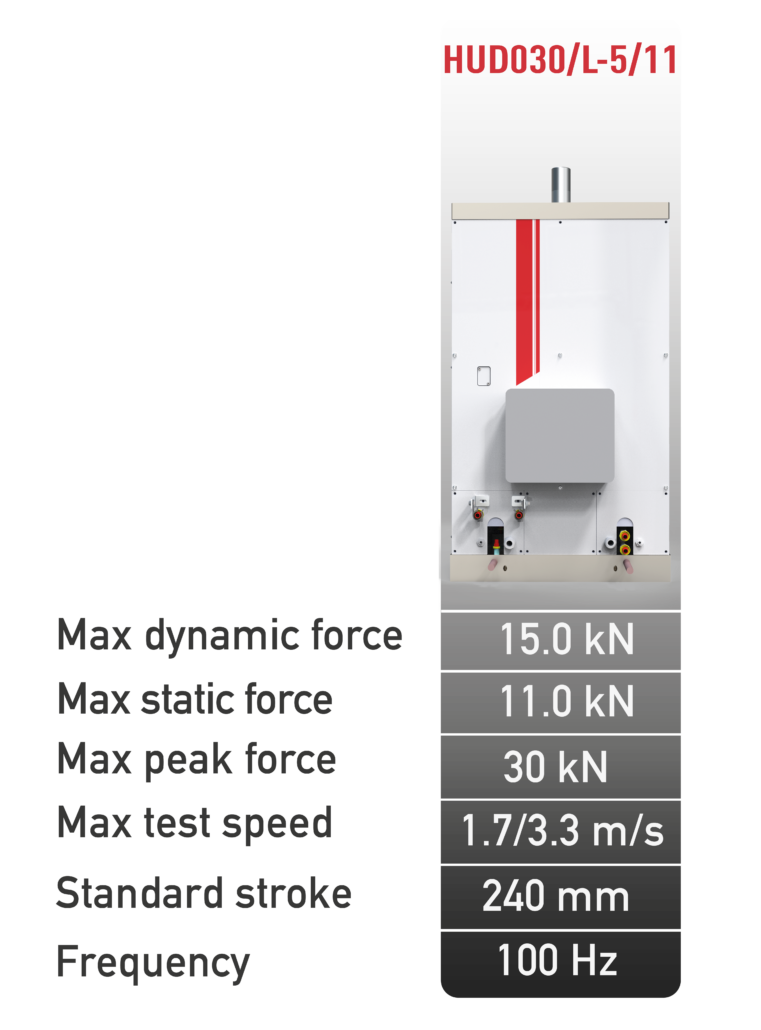

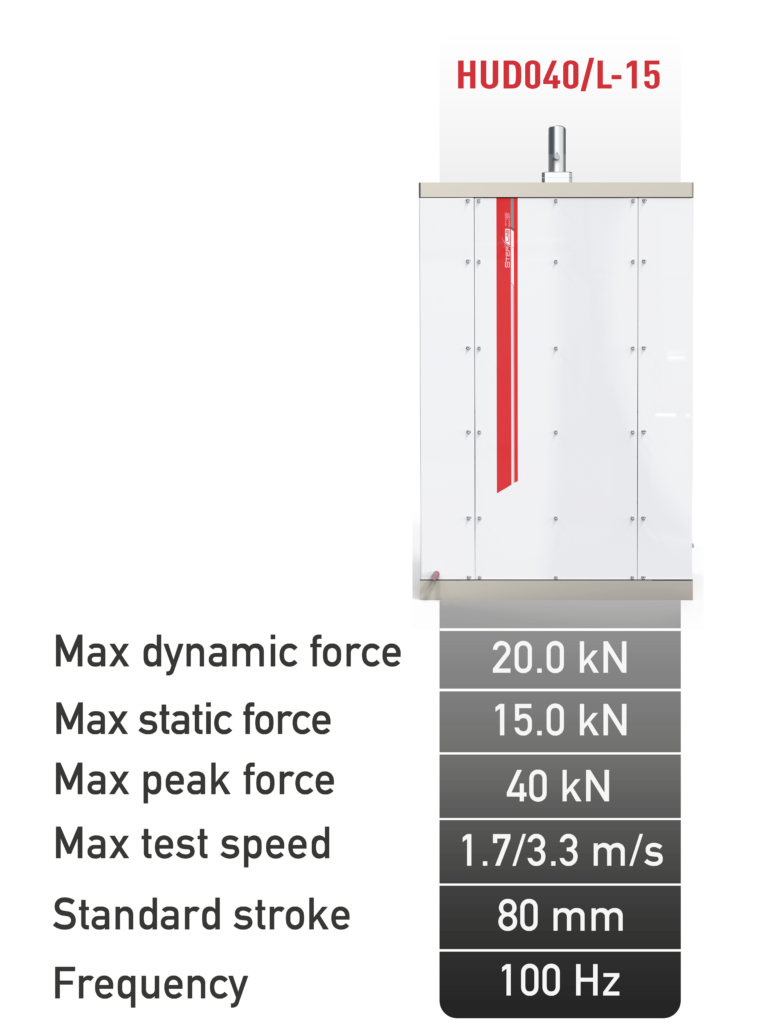

HUD SERIES	UNITS	HUD010/ HUD010L	HUD020/ HUD020L	HUD030/ HUD030L	HUD060/ HUD060L
Max. Peak Force	kN	11.00	22.00	33.00	66.00
Max. Dynamic Force	kN	4.00	8.00	12.00	24.00
Max. Static Force	kN	3.00	6.00	9.00	18.00
Max. Test Speed	m/s	4.0/6.0	4.0/6.5	4.0/6.5	4.0/6.5
Max. Speed at Peak force	m/s	1.6/4.0	1.6/4.0	1.6/4.0	1.6/4.0
Max. Test Frequency *	Hz	125	125	125	125
Standard Stroke	mm	200	200	200	200
Working Temperature	°C	5-30	5-30	5-30	5-30
Cooling		Air	Air	Air	Water closed circuit
Facility Requirement		3PH 400Vac	3PH 400Vac	3PH 400Vac	3PH 400Vac

* Max. Frequency of 250 Hz available on request.

-Maximum performance achieved at 480 Vac
-Stroke of 260, 300 and 380 mm is available for HUD020, HUD030 and HUD060 versions.
-For higher loads, please refer to KUD Series.

XUD SERIES	UNITS	XUD05	XUD010	XUD020	XUD030
Max. Peak Force	kN	5.5	10.4	20.5	31.2
Max. Dynamic Force	kN	1.5	2.7	5.4	8.1
Max. Static Force	kN	1.0	2.1	4.2	6.3
Max. Test Speed	m/s	6.0
Max. Speed at Peak Force	m/s	4.0
Max. Test Frequency	Hz	600
Standard Stroke	mm	220
Working Temperature	°C	5-30
Cooling		Air
Facility Requirement		3PH 400V

Imperial

UD SERIES	UNITS	UD01	UD02	UD04	UD08	UD012	UD025	UD030	UD050	UD100
Max. Dynamic Force	lbf	157.3	539.5	899.2	1798	2697	5620	6744	11240	22480
Max. Static Force	lbf	122.1	395.7	652.0	1303	1955	3259	4316	6519	13038
Max. Test Speed	in/s	78.7	78.7	78.7	78.7	78.7	39.4	78.7	39.4	39.4
Max. Test Frequency	Hz	250*	250*	250*	250*	250*	100*	250*	100*	100*
Standard Stroke	in	3.15	3.94	3.15	3.15	3.15	3.35	3.15	3.35	3.35
Working Temperature	°F	41-86	41-86	41-86	41-86	41-86	41-86	41-86	41-86	41-86
Cooling		Air	Air	Air	Air	Air	Water closed circuit	Water closed circuit	Water closed circuit	Water closed circuit
Facility Requirement		3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V	3PH 400V

HUD SERIES	UNITS	HUD010/ HUD010L	HUD020/ HUD020L	HUD030/ HUD030L	HUD060/ HUD060L
Max. Peak Force	lbf	2473	4945	7418	14837
Max. Dynamic Force	lbf	899.2	1798	2697	5395
Max. Static Force	lbf	674.4	1348	2023	4046
Max. Test Speed	in/s	157.4/236.2	157.4/255.9	157.48/255.91	157.48/255.91
Max. Speed at Peak force	in/s	63.0/157.5	63.0/157.5	63.0/157.5	63.0/157.5
Max. Test Frequency *	Hz	125	125	125	125
Standard Stroke	in	7.87	7.87	7.87	7.87
Working Temperature	°F	41-86	41-86	41-86	41-86
Cooling		Air	Air	Air	Water closed circuit
Facility Requirement		3PH 400Vac	3PH 400Vac	3PH 400Vac	3PH 400Vac

* Max. Frequency of 250 Hz available on request.

-Maximum performance at 480 Vac
-Stroke of 10.23, 11.81 and 14.96 in is available for HUD020, HUD030 and HUD060 versions.
-For higher loads, please refer to KUD Series.

XUD SERIES	UNITS	XUD05	XUD010	XUD020	XUD030
Max. Peak Force	lbf	1236	2338	4608	7014
Max. Dynamic Force	lbf	337.2	606.9	1213	1820
Max. Static Force	lbf	224.8	472.1	944.2	1416
Max. Test Speed	in/s	236.2
Max. Speed at Peak Force	in/s	157.5
Max. Test Frequency	Hz	600
Standard Stroke	in	8.7
Working Temperature	°F	41-86
Cooling		Air
Facility Requirement		3PH 400V
