Carga: 1-160 kN
Velocidad máx: 8 m/s
Frecuencia máx.: 500 Hz
Fatiga
Tracción
Compresión
Materiales
Componentes
Carga: 1-160 kN
Velocidad máx: 8 m/s
Frecuencia máx.: 500 Hz
Fatiga
Tracción
Compresión
Materiales
Componentes
Nuestros sistemas electrodinámicos basados en motores lineales constituyen la mejor solución para realizar ensayos dinámicos y de fatiga avanzados. Hemos clasificado nuestros sistemas en las familias UD, HUD, KUD y XUD, cada una de ellas diseñada con características distintivas en cuanto a durabilidad, dinámica y aceleraciones, lo que las hace adecuadas para llevar a cabo una gama específica de ensayos en función de la aplicación.
La serie UD está diseñada para realizar pruebas dinámicas continuas durante millones de ciclos
.
La serie HUD ha sido diseñada para pruebas de alta dinámica y resistencia debido a las elevadas fuerzas continuas.
La serie KUD se ha diseñado para ensayos de durabilidad a largo plazo y con cargas elevadas.
La serie XUD está diseñada para pruebas de corta duración con aceleraciones elevadas.
| LINEAR MOTORS | UD | HUD | XUD |
|---|---|---|---|
| Polymer fatigue test | ✔✔ | ✓ | - |
| Steel fatigue test | ✔✔ | ✓ | - |
| DMA test <250 Hz | ✔✔ | ✓ | ✓ |
| DMA test <1000 Hz | - | - | ✔✔ |
| High strain rate test <2 m/s | ✔✔ | ✓ | ✓ |
| High strain rate test <7 m/s | - | ✔✔ | - |
| Crack propagation | ✔✔ | ✓ | ✓ |
| PSD (bandwidth <250 Hz) | ✔✔ | ✓ | ✓ |
| PSD (bandwidth <1000 Hz) | ✓ | ✓ | ✔✔ |
| Component fatigue test | ✔✔ | ✓ | ✓ |
| Damper test | - | ✔✔ | ✓ |
Con una fuerza dinámica de 100 kN, la UD100 es la primera máquina capaz de sustituir a los sistemas hidráulicos. Versátil y eficiente, realiza ensayos de fatiga, ensayos estáticos, ensayos de tracción a alta velocidad y ensayos biaxiales. Integrándose perfectamente con el ecosistema de software del Centro de Pruebas, la UD100 ofrece una solución completa para el análisis de materiales.
Características
| UD SERIES | UNITS | UD01 | UD02 | UD04 | UD08 | UD012 | UD025 | UD030 | UD050 | UD100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. Dynamic Force | kN | 0.70 | 2.40 | 4.00 | 8.00 | 12.00 | 25.00 | 30.00 | 50.00 | 100.00 |
| Max. Static Force | kN | 0.54 | 1.76 | 2.90 | 5.80 | 8.70 | 14.50 | 19.20 | 29.00 | 58.00 |
| Max. Test Speed | m/s | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 1.00 | 2.00 | 1.00 | 1.00 |
| Max. Test Frequency | Hz | 250* | 250* | 250* | 250* | 250* | 100* | 250* | 100* | 100* |
| Standard Stroke | mm | 80 | 100 | 80 | 80 | 80 | 85 | 80 | 85 | 85 |
| Working Temperature | °C | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
| Cooling | Air | Air | Air | Air | Air | Water closed circuit | Water closed circuit | Water closed circuit | Water closed circuit | |
| Facility Requirement | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V |
* A petición
| HUD SERIES | UNITS | HUD010/ HUD010L | HUD020/ HUD020L | HUD030/ HUD030L | HUD060/ HUD060L |
|---|---|---|---|---|---|
| Max. Peak Force | kN | 11.00 | 22.00 | 33.00 | 66.00 |
| Max. Dynamic Force | kN | 4.00 | 8.00 | 12.00 | 24.00 |
| Max. Static Force | kN | 3.00 | 6.00 | 9.00 | 18.00 |
| Max. Test Speed | m/s | 4.0/6.0 | 4.0/6.5 | 4.0/6.5 | 4.0/6.5 |
| Max. Speed at Peak force | m/s | 1.6/4.0 | 1.6/4.0 | 1.6/4.0 | 1.6/4.0 |
| Max. Test Frequency * | Hz | 125 | 125 | 125 | 125 |
| Standard Stroke | mm | 200 | 200 | 200 | 200 |
| Working Temperature | °C | 5-30 | 5-30 | 5-30 | 5-30 |
| Cooling | Air | Air | Air | Water closed circuit | |
| Facility Requirement | 3PH 400Vac | 3PH 400Vac | 3PH 400Vac | 3PH 400Vac |
* A petición

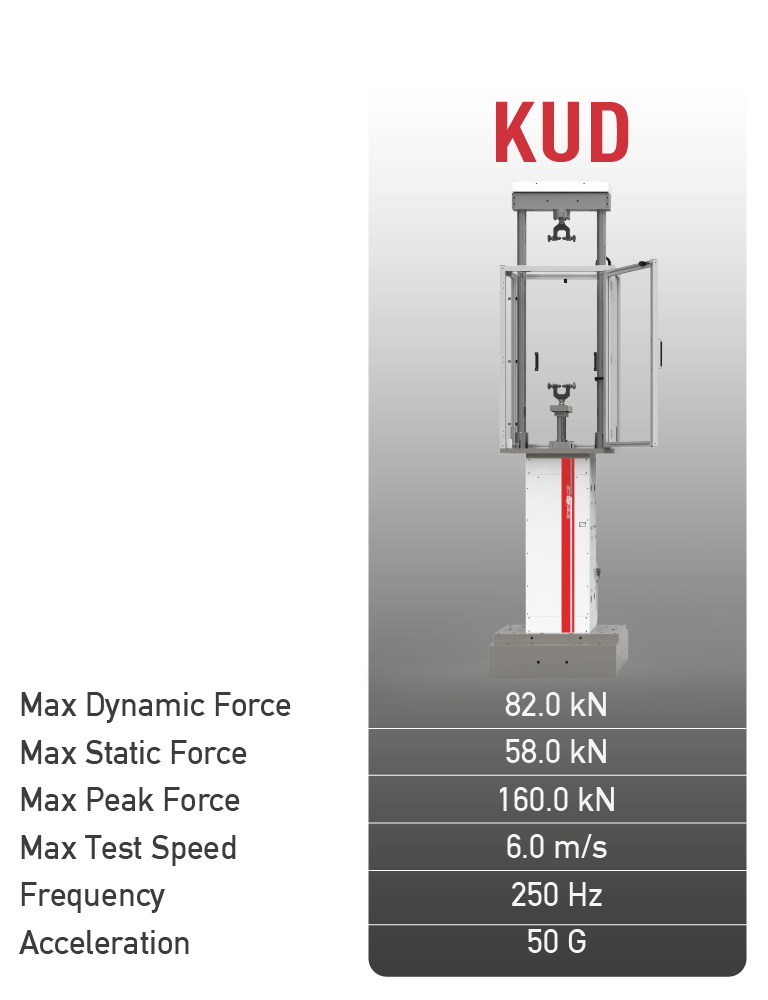

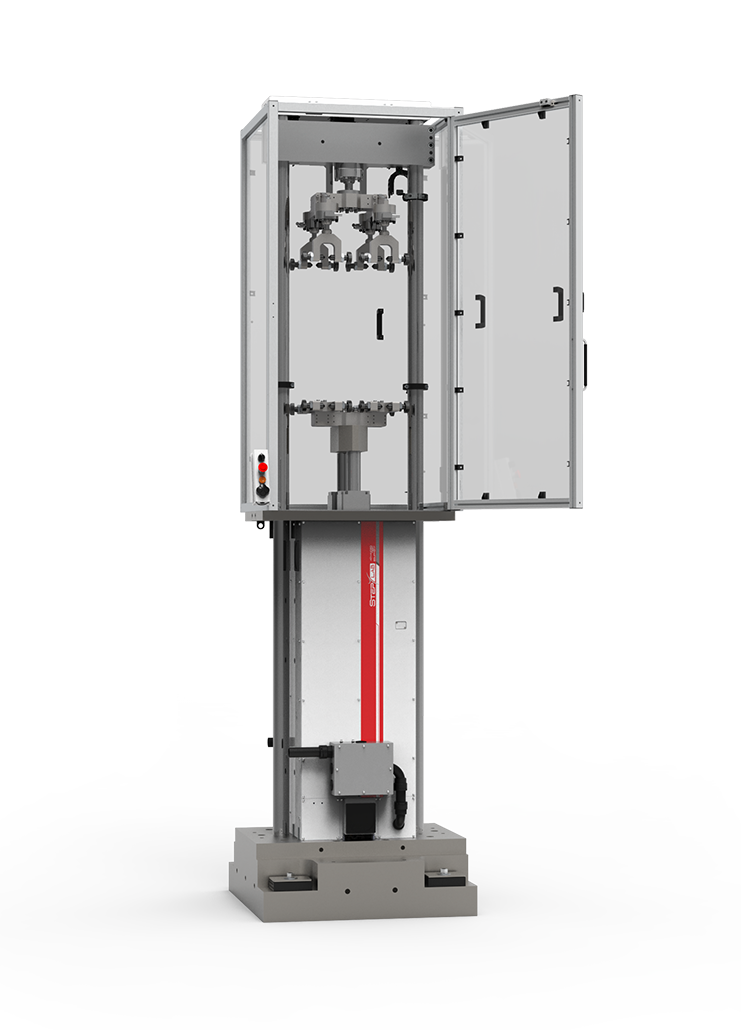

| KUD SERIES | KUD030 | KUD040 | KUD060 | KUD080 | KUD160 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | STD | L1 | L2 | STD | L1 | L2 | STD | L1 | L2 | STD | L1 | L2 | STD | L1 | L2* |
| Cont.dynamic load [kN] | 15 | 20 | 30 | 41 | 82 | ||||||||||
| Peak load [kN] | 30 | 40 | 60 | 80 | 160 | ||||||||||
| Speed at cont.load [m/s] 400VAC | 1.25 | 2.5 | 4.2 | 1.25 | 2.5 | 4.2 | 1.25 | 2.5 | 4.2 | 1.25 | 2.5 | 4.2 | 1.25 | 2.5 | 4.2 |
| Speed at cont.load [m/s] 480VAC | 1.5 | 3 | 5 | 1.5 | 3 | 5 | 1.5 | 3 | 5 | 1.5 | 3 | 5 | 1.5 | 3 | 5 |
| Max speed [m/s] | 2 | 3 | 6 | 2 | 3 | 6 | 2 | 3 | 6 | 2 | 3 | 6 | 2 | 3 | 6 |
| Max Stroke [mm] | 200 300 |
||||||||||||||
| Specimens | Multiple | ||||||||||||||
| Linear Guides | New special guides | ||||||||||||||
| Anti-rotational system | Included | ||||||||||||||
| Floor connection | Rigidly connected to the floor or on air springs | ||||||||||||||
* A petición

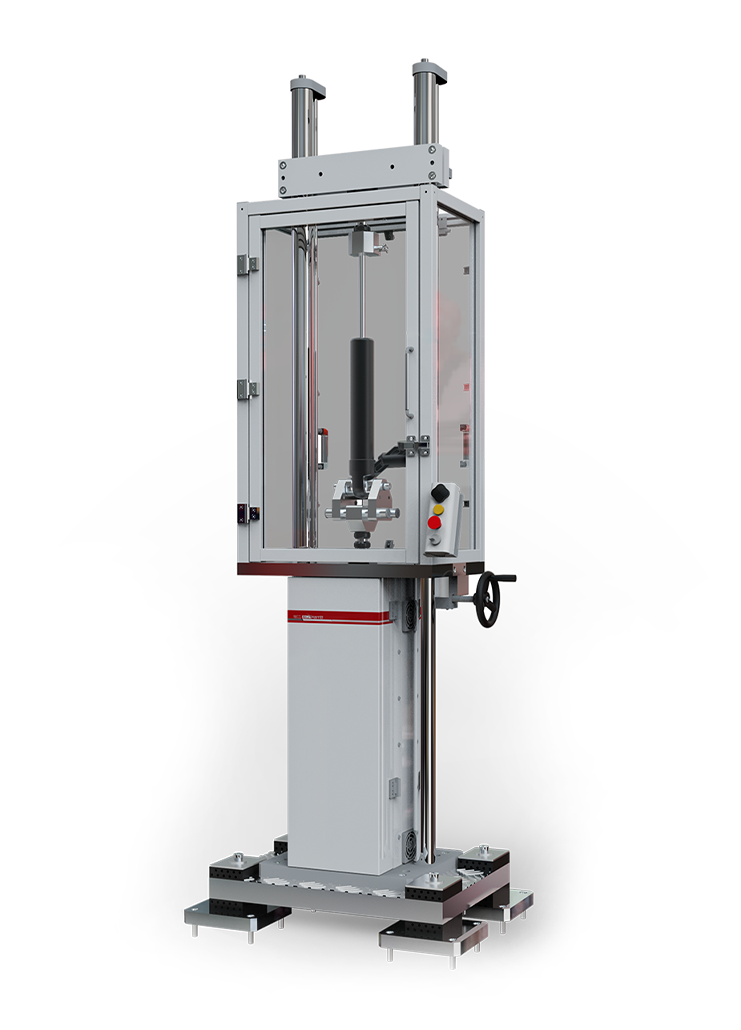

| XUD SERIES | UNITS | XUD05 | XUD010 | XUD020 | XUD030 |
|---|---|---|---|---|---|
| Max. Peak Force | kN | 5.5 | 10.4 | 20.5 | 31.2 |
| Max. Dynamic Force | kN | 1.5 | 2.7 | 5.4 | 8.1 |
| Max. Static Force | kN | 1.0 | 2.1 | 4.2 | 6.3 |
| Max. Test Speed | m/s | 6.0 | |||
| Max. Speed at Peak Force | m/s | 4.0 | |||
| Max. Test Frequency | Hz | 600 | |||
| Standard Stroke | mm | 220 | |||
| Working Temperature | °C | 5-30 | |||
| Cooling | Air | ||||
| Facility Requirement | 3PH 400V | ||||
* A petición
| TEST | APPLICATION | STANDARD | DESCRIPTION |
|---|---|---|---|
| Static | Plastics | ASTM D638 | Tensile properties of plastics |
| Static | Plastics | ISO 527-1 | Plastics-Determination of tensile properties |
| Static | Plastics | ISO 527-2 | Plastics-Determination of tensile properties |
| Static | Metals | ASTM E21 | High temperature tensile testing of metallic materials |
| Static | Metals | ASTM E290 | Material bending test for ductility |
| Static | Metals | ASTM E517 | Plastic deformation ratio r for sheet metal |
| Static | Metals | ASTM E646 | Tensile hardening exponents (n values) of sheet metal materials |
| Static | Metals | ASTM E8M | Tensile testing of metallic materials |
| Static | Metals | ASTM E9 | Compression testing of metallic materials at room temperature |
| Static | Metals | EN 10002-1:2001 (replaced by ISO EN 6892-1:2019) | Tensile testing of metallic materials. Test method at room temperature |
| Static | Metals | ISO 6892-1 | Metallic materials – Tensile testing Part 1: Test method at room temperature |
| Static | Metals | ISO 7438 | Metallic materials. Proof of folding. |
| Static | Metals | ISO 783 | Metallic materials – Tensile test of steel at elevated temperature |
| Static / Fatigue | Bike | EN 15194 | Electrically assisted pedal cycles – EPAC Bicycles – test methods |
| Static / Fatigue | Bike | ISO 4210-3 | Safety requirements for bicycles – Part 3: Common test methods |
| Static / Fatigue | Bike | ISO 4210-4 | Safety requirements for bicycles – Part 4: Braking test methods |
| Static / Fatigue | Bike | ISO 4210-5 | Safety requirements for bicycles – Part 5: Steering test methods |
| Static / Fatigue | Bike | ISO 4210-6 | Safety requirements for bicycles – Part 6: Frame and fork test methods |
| Static / Fatigue | Bike | ISO 4210-7 | Safety requirements for bicycles – Part 7: Test methods for wheels and rims |
| Static / Fatigue | Bike | ISO 4210-8 | Safety requirements for bicycles – Part 8: Pedal and transmission system test methods |
| Static / Fatigue | Bike | ISO 4210-9 | Safety requirements for bicycles – Part 9: Test methods for saddles and seatposts |
| Static / Fatigue | Biomedical | ASTM F1264 | Standard specifications and test methods for intramedullary fixation devices |
| Static / Fatigue | Biomedical | ASTM F1717 | Standard test methods for spinal implant structures in a vertebrectomy model |
| Static / Fatigue | Biomedical | ASTM F1798 | Standard test method for evaluating the static and fatigue properties of interconnecting mechanisms and subassemblies used in spinal arthrodesis implants |
| Static / Fatigue | Biomedical | ASTM F1800 | Standard practice for cyclic fatigue testing of tibial plateau metal components of total knee joint replacements |
| Static / Fatigue | Biomedical | ASTM F2068 | Standard specifications for femoral prostheses – metallic implants |
| Static / Fatigue | Biomedical | ASTM F2077 | Test methods for intervertebral body fusion devices. |
| Static / Fatigue | Biomedical | ASTM F2193 | Standard specifications and test methods for components used in surgical fixation of the spinal skeletal system |
| Static / Fatigue | Biomedical | ASTM F2502 | Standard specifications and test methods for resorbable plates and screws for internal fixation implants |
| Static / Fatigue | Biomedical | ASTM F2580 | Standard practice for evaluating the modular connection of a proximally fixed femoral hip prosthesis |
| Static / Fatigue | Biomedical | ASTM F2706 | Standard test methods for occipito-cervical and occipito-cervical-thoracic spinal implant constructions in a vertebrectomy model |
| Static / Fatigue | Biomedical | ASTM F382 | Standard specification and test method for metal bone plates |
| Static / Fatigue | Biomedical | ASTM F384 | Standard specifications and test methods for angled metal devices for orthopedic fracture fixation |
| Static / Fatigue | Biomedical | ASTM F543 | Standard specifications and test methods for metallic medical bone screws |
| Static / Fatigue | Biomedical | EN 843-1 | Mechanical properties of monolithic ceramics at room temperature – Determination of flexural strength |
| Static / Fatigue | Biomedical | ISO 11405 | Dental structure adhesion testing |
| Static / Fatigue | Biomedical | ISO 12189-8 | Mechanical testing of implantable spinal devices – Fatigue test method for spinal implant assemblies using anterior support |
| Static / Fatigue | Biomedical | ISO 14801 | Dentistry – Implants – Dynamic load testing for endosseous dental implants |
| Static / Fatigue | Biomedical | ISO 14879-1 | Total knee joint replacement Determination of strength properties of tibial knee trays |
| Static / Fatigue | Biomedical | ISO 6872 | Dentistry – Ceramic Materials |
| Static / Fatigue | Biomedical | ISO 7206 | Surgical implants – Partial and total hip joint replacements |
| Static / Fatigue | Biomedical | ISO 9585 | Surgical implants – Determination of flexural strength and stiffness of bone plates |
| Static | Rubber | ISO 2439 | Determination of hardness (indentation technique) |
| Static | Rubber | ISO 3386 | Determination of compressive stress-strain characteristics |
