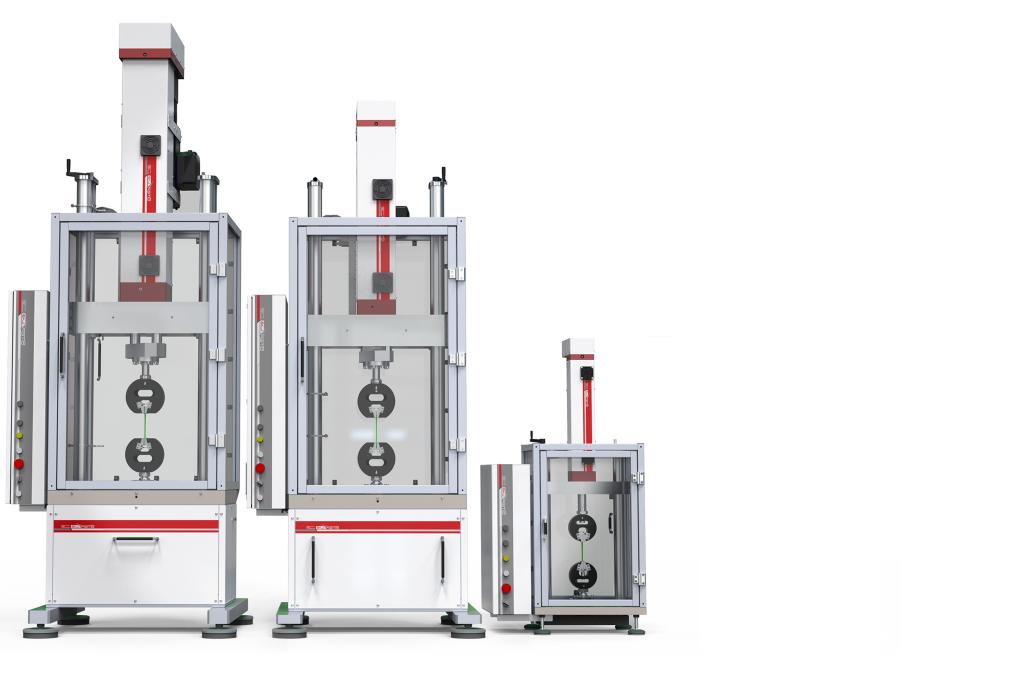

STATIC MATERIAL TESTING MACHINES

Brochure

Our static material testing machines are suitable for applications in all sectors, whether in quality control or research projects, offering outstanding performance with all kinds of materials and products. In addition, these static test systems can also perform dynamic tests, offering great advantages for our customers.

Features

Max. Static force: 268 kN

Type of test

Tensile
Compression
Flexure
Creep

Applications

Materials
Components

STATIC MATERIAL TESTING MACHINES

Brochure

Our static material testing machines are suitable for applications in all sectors, whether in quality control or research projects, offering outstanding performance with all kinds of materials and products. In addition, these static test systems can also perform dynamic tests, offering great advantages for our customers.

Features

Max. Static force: 268 kN

Type of test

Tensile
Compression
Flexure
Creep

Applications

Materials
Components

Closed-loop force and displacement control via Test Center controller
Maximum accelerations up to 2g
Control and acquisition loops up to 8 kHz
High-resolution 24-bit data acquisition
Can be installed on any type of structure and support.
Compatible with configurations of one to five controlled axes for creep testing.
Installation in different positions
Control station in separate and independent position
Simple and flexible test management via a graphical Test Center interface
Ideal for use in clean rooms
Wide variety of grips, dedicated test accessories, and load cells
Integration with extensometers and climatic chambers

Electromechanical actuators

TECHNICAL SPECIFICATIONS

Metric

EA SERIES	EA05	EA050	EA100	EA200
Max. Dynamic Force	7.50 kN	50.00 kN	100.00 kN	200.00 kN
Max. Static Force	15.00 kN	65.00 kN	139.00 kN	268.50 kN
Standard Stroke	250 mm	200 mm	200 mm	200 mm
Frequency	30 Hz	20 Hz	20 Hz	20 Hz
Length	653 mm	1100 mm	1320 mm	1500 mm
Width	115 mm	185 mm	280 mm	425 mm
Depth	240 mm	370 mm	600 mm	940 mm
Length with piston	737 mm	1250 mm	1554 mm	1745 mm
Ambient Temp.	5 – 30 °C	5 – 30 °C	5 – 30 °C	5 – 30 °C

Imperial

EA SERIES	EA05	EA050	EA100	EA200
Max. Dynamic Force	1686.07 lbf	11240.45 lbf	22480.89 lbf	44961.79 lbf
Max. Static Force	3372.13 lbf	14612.58 lbf	31248.44 lbf	60361.20 lbf
Standard Stroke	9.84 in	7.87 in	7.87 in	7.87 in
Frequency	30 Hz	20 Hz	20 Hz	20 Hz
Length	25.71 in	43.31 in	51.97 in	59.06 in
Width	4.53 in	7.28 in	11.02 in	16.73 in
Depth	9.45 in	14.57 in	23.62 in	37.01 in
Length with piston	29.02 in	49.21 in	61.18 in	68.70 in
Ambient Temp.	41 – 86 °F	41 – 86 °F	41 – 86 °F	41 – 86 °F

FEATURES

No maintenance

High reliability

High efficiency

Wide range of use

Simple installation

FEATURES

No maintenance
High performance
High efficiency
Wide range of use
Quick and easy installation

Certified Standards

Plastics

PROOF	MATERIAL	NORMA	DESCRIPTION
Static tests	Plastic	ASTM D638	Tensile properties of plastics
Static tests	Plastic	ISO 527-1 ISO 527-2	Plastics-Determination of Tensile Properties

Metal

PROOF	MATERIAL	NORMA	DESCRIPTION
Static tests	Metal	ASTM E21	High-temperature tensile testing of metallic materials
Static tests	Metal	ASTM E290	Material bending test for ductility
Static tests	Metal	ASTM E517	Plastic deformation ratio r for sheet metal
Static tests	Metal	ASTM E646	Tensile hardening exponents (n-values) of sheet metal materials
Static tests	Metal	ASTM E8M	Tensile testing of metallic materials
Static tests	Metal	ASTM E9	Compression testing of metallic materials at room temperature
Static tests	Metal	EN 10002-1:2001 (replaced by ISO EN 6892-1:2019)	Tensile testing of metallic materials. Test method at room temperature
Static tests	Metal	ISO 6892-1	Metallic materials – Tensile testing Part 1: Test method at room temperature
Static tests	Metal	ISO 7438	Metallic materials. Bending test.
Static tests	Metal	ISO 783	Metallic materials – Tensile test of steel at high temperature

Bicycles

PROOF	MATERIAL	NORMA	DESCRIPTION
Static / Fatigue	Bikes	EN 15194	Electrically assisted pedal cycles – EPAC Bicycles – test methods
Static / Fatigue	Bikes	ISO 4210-3	Bicycle safety requirements – Part 3: Common test methods
Static / Fatigue	Bikes	ISO 4210-4	Safety requirements for bicycles – Part 4: Braking test methods
Static / Fatigue	Bikes	ISO 4210-5	Bicycle safety requirements – Part 5: Steering test methods
Static / Fatigue	Bikes	ISO 4210-6	Safety requirements for bicycles – Part 6: Test methods for frame and fork
Static / Fatigue	Bikes	ISO 4210-7	Bicycle safety requirements – Part 7: Test methods for wheels and rims
Static / Fatigue	Bikes	ISO 4210-8	Safety requirements for bicycles – Part 8: Pedal and drive system test methods
Static / Fatigue	Bikes	ISO 4210-9	Bicycle safety requirements – Part 9: Test methods for saddles and seatposts

Biomedical

PROOF	MATERIAL	NORMA	DESCRIPTION
Static / Fatigue	Biomedical	ASTM F1264	Standard Specifications and Test Methods for Intramedullary Fixation Devices
Static / Fatigue	Biomedical	ASTM F1717	Standard test methods for spinal implant structures in a vertebrectomy model
Static / Fatigue	Biomedical	ASTM F1798	Standard test method for the evaluation of static and fatigue properties of interconnection mechanisms and subassemblies used in spinal arthrodesis implants
Static / Fatigue	Biomedical	ASTM F1800	Standard Practice for Cyclic Fatigue Testing of Metal Components of the Tibial Plateau of Total Knee Joint Prostheses
Static / Fatigue	Biomedical	ASTM F2068	Standard specifications for femoral prostheses – metal implants
Static / Fatigue	Biomedical	ASTM F2077	Test methods for intervertebral body fusion devices
Static / Fatigue	Biomedical	ASTM F2193	Standard specifications and test methods for components used in surgical fixation of the spinal skeletal system
Static / Fatigue	Biomedical	ASTM F2502	Standard specifications and test methods for resorbable plates and screws for internal fixation implants
Static / Fatigue	Biomedical	ASTM F2580	Standard practice for evaluating the modular connection of a proximally fixed femoral hip prosthesis
Static / Fatigue	Biomedical	ASTM F2706	Standard test methods for occipito-cervical and occipito-cervical-thoracic spinal implant constructions in a vertebrectomy model
Static / Fatigue	Biomedical	ASTM F382	Standard Specifications and Test Method for Metal Bone Plates
Static / Fatigue	Biomedical	ASTM F384	Standard specifications and test methods for angled metal devices for orthopaedic fracture fixation
Static / Fatigue	Biomedical	ASTM F543	Standard Specifications and Test Methods for Metal Medical Bone Screws
Static / Fatigue	Biomedical	EN 843-1	Mechanical properties of monolithic ceramics at room temperature – Determination of flexural strength
Static / Fatigue	Biomedical	ISO 11405	Tooth structure adhesion test
Static / Fatigue	Biomedical	ISO 12189-8	Mechanical testing of implantable spinal devices – Fatigue test method for spinal implant assemblies using anterior support
Static / Fatigue	Biomedical	ISO 14801	Dentistry – Implants – Dynamic load test for endosseous dental implants
Static / Fatigue	Biomedical	ISO 14879-1	Total knee joint replacement Determining the strength properties of tibial knee trays
Static / Fatigue	Biomedical	ISO 6872	Dentistry – Ceramic materials
Static / Fatigue	Biomedical	ISO 7206	Surgical implants – Partial and total hip joint replacements
Static / Fatigue	Biomedical	ISO 9585	Surgical implants – Determination of flexural strength and stiffness of bone plates

Rubber

PROOF	MATERIAL	NORMA	DESCRIPTION
Static tests	Rubber	ISO 2439	Determination of hardness (indentation technique)
Static tests	Rubber	ISO 3386	Determination of stress-strain characteristics in compression

Explore our catalogue or contact us to find the right product for your business together.
