Max. Peak force: 31.2 kN
Max. Dynamic force: 8.1 kN
Max. Acceleration: 100 G
Performance
Shock Absorbers
Suspensions
Max. Peak force: 31.2 kN
Max. Dynamic force: 8.1 kN
Max. Acceleration: 100 G
Performance
Shock Absorbers
Suspensions

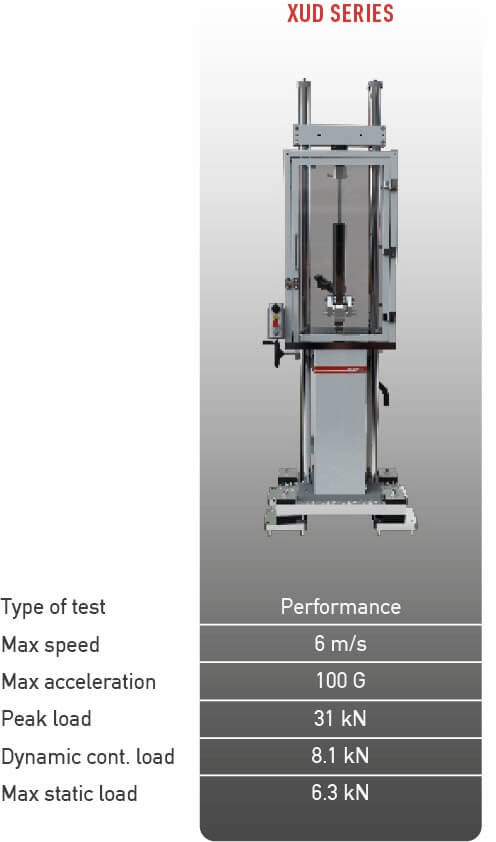

At STEP Lab, we have introduced XUD, the ultra-high dynamic solution for shock absorbers and suspensions.
Applications
Features
Advantages
| XUD SERIES | XUD05 | XUD010 | XUD020 | XUD030 |
|---|---|---|---|---|
| Max. Peak Force | 5.50 kN | 10.40 kN | 20.50 kN | 31.20 kN |
| Max. Dynamic Force | 1.50 kN | 2.70 kN | 5.40 kN | 8.10 kN |
| Max. Static Force | 1.00 kN | 2.10 kN | 4.20 kN | 6.30 kN |
| Max. Test Speed | 6.00 m/s | 6.00 m/s | 6.00 m/s | 6.00 m/s |
| Max. Speed at Peak Force | 4.00 m/s | 4.00 m/s | 4.00 m/s | 4.00 m/s |
| Max. Test Frequency | 600 Hz | 600 Hz | 600 Hz | 600 Hz |
| Standard Stroke | 220 mm | 220 mm | 220 mm | 220 mm |
| Cooling | Air | Air | Air | Air |
| Working Temperature | 5-30 °C | 5-30 °C | 5-30 °C | 5-30 °C |
| Facility Requirement | 3PH 400V | 3PH 400V | 3PH 400V | 3PH 400V |
XUD systems reach a maximum frequency of 500 Hz. If your test requires higher values, please see our Ultra-High Frequency
Test System (UHF), which reaches 1000 Hz.
Alongside XUD Series, we offer a range of other testing machines designed for damper and shock absorber testing. Our products are engineered to outperform hydraulic systems by effectively addressing the need for high performance, ease of installation, and low energy consumption. We provide the broadest range of suspension and shock absorber test systems available, featuring peak loads up to 120 kN and continuous dynamic loads up to 75 kN.
 |  |  |  |  |
|
| LUD SERIES | HUD SERIES | XUD SERIES | KUD SERIES | EOL SERIES | |
| Type of test | Performance Reliability | Performance Quality | Performance | Durability Reliability | End of Line Quality |
| Max. Speed | 1.5 m/s | 8.0 m/s | 6.0 m/s | 6.0 m/s | 6.5 m/s |
| Max. Acceleration | 6 G | 75 G | 110 G | 50 G | 65 G |
| Peak load | 20 kN | 66 kN | 31 kN | 160 kN | 66 kN |
| Dynamic load | 7 kN | 24 kN | 8.1 kN | 82 kN | 24 kN |
| Static load | 6 kN | 18 kN | 6.3 kN | 58 kN | 18 kN |
No maintenance
High performance
High efficiency
Wide range of use
Quick and easy installation
XUD010 is an high dynamic electric machine, dedicated to the testing of shock absorbers and dampers with a wide speed range for dynamic testing with HIL (Hardware-in-the-Loop). The linear motor, designed by STEP Lab, ensures the best performances on the market!
