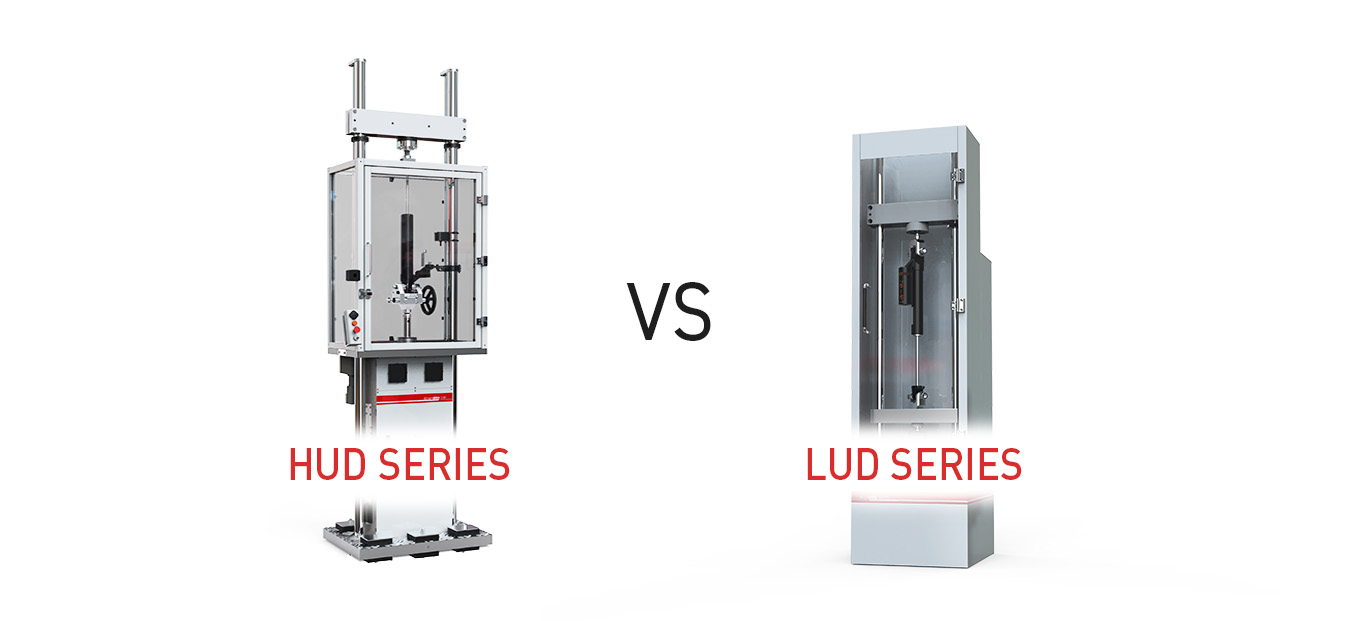

HUD vs LUD: Which Shock Dyno is Right for You?
When it comes to shock absorber testing, choosing the right shock dyno or damper test bench is critical to achieving accurate, reliable, and repeatable results.
At STEP Lab, we specialize in designing and manufacturing advanced test systems for all types of shock absorbers and suspensions. Our range of testing solutions includes both electrodynamic (HUD) and electromechanical (LUD) machines, allowing for durability tests, performance evaluations, and many other types of tests.
In this post, we’ll break down the key differences between these systems and help you decide which one is the best fit for your shock absorber testing needs.
What is a Shock Absorber Testing Machine?
A shock absorber testing machine, also known as a shock dyno or damper test bench, is a specialized piece of equipment used to evaluate the performance, durability, and reliability of shock absorbers. These machines simulate real-world conditions, such as varying frequencies, loads, and displacements, to ensure that shock absorbers meet stringent quality standards. Whether you’re testing for automotive, aerospace, or industrial applications, the right shock dyno can make all the difference.
HUD: Electrodynamic Shock Absorber Testing Machine
The HUD system is an electrodynamic shock dyno powered by advanced linear motor technology. It’s designed for high-frequency, high-precision testing, making it ideal for automotive manufacturers testing high-performance shock absorbers and R&D labs requiring precise, high-frequency analysis.
Technical Specifications:
- Peak Load: 120 kN
- Dynamic Load: 75 kN
- Static Load: 45 kN
- Max. Speed: 8.0 m/s
- Max. Acceleration: 65 G
Applications:
- Testing of shock absorbers for automotive, motorcycle, and heavy transport industries.
- High dynamic tests for suspension and shock absorbers.
- Characterization and durability tests.
- Closed-loop control of force and displacement.
- Reproduction of sinusoidal, triangular, and custom profiles.
LUD: Electromechanical Shock Absorber Testing Machine
The LUD system is an electromechanical damper test bench designed for endurance testing and high-force applications. Its robust mechanical structure and advanced control systems ensure reliable performance with lower maintenance than hydraulic alternatives. Offering high force and displacement capabilities, it remains a cost-effective solution. Compared to Crank and Scotch Yoke Dynos, it provides greater load capacity and versatility, making it the superior choice for demanding testing needs.
Technical Specifications:
- Max. Speed: 1.5 m/s
- Max. Acceleration: 6 G
- Peak Load: 22 kN
- Dynamic Load: 7 kN
- Static Load: 6 kN
Advantages:
- Stroke and speed test fully adjustable by software.
- Replication of road profiles.
- Max. Stroke: 500 mm.
- Effortless installation process.
- Intuitive user interface.
HUD vs. LUD: Which Shock Dyno is Right for You?
Choosing between the HUD and LUD shock absorber testing machines depends on your specific testing requirements. Here’s a quick comparison to help you decide:
| Feature | HUD (Electrodynamic) | LUD (Electromechanical) |
|---|---|---|
| Peak Load | 120 kN | 22 kN |
| Dynamic Load | 75 kN | 7 kN |
| Static Load | 45 kN | 6 kN |
| Max. Speed | 8.0 m/s | 1.5 m/s |
| Max. Acceleration | 65 G | 6 G |
| Applications | High dynamic tests, durability, characterization | Performance, reliability, endurance |
| Cost | Higher initial investment | More cost-effective |
If your focus is on high-frequency shock absorber testing or R&D applications, the HUD system is likely the better choice.
On the other hand, if you need a robust damper test bench for endurance or high-force testing, the LUD system offers exceptional value and performance.
Why Choose Our Shock Absorber Testing Machines?
At STEP Lab, we pride ourselves on delivering shock dynos and damper test benches that set the industry standard. Here’s why our HUD and LUD systems stand out:
- Advanced technology: Leveraging electrodynamic and electromechanical systems for superior performance.
- Customization: Tailored solutions to meet your specific testing needs.
- Reliability: Built to deliver consistent, accurate results over the long term.
- Support: Comprehensive service and support to keep your testing operations running smoothly.
Conclusion
Whether you’re testing high-performance automotive shock absorbers or evaluating the durability of industrial dampers, choosing the right shock absorber testing machine is essential. Our HUD and LUD systems offer cutting-edge technology, unmatched precision, and the flexibility to meet a wide range of testing requirements.
Ready to take your shock absorber testing to the next level? Contact us today to learn more about our shock dynos and damper test benches, and let us help you find the perfect solution for your needs.
