ULTRA-HIGH FREQUENCY TEST SYSTEMS

Brochure

At STEP Lab, we design ultra-high frequency test systems capable of reaching frequencies up to 1000 Hz. These systems are engineered to analyse the dynamic behaviour of materials and components, offering high performance for DMA, NVH, and HCF applications. UHFTS complement the XUD Series, for tests requiring higher frequencies.

Features

Max. Peak load: 11.4 kN
Max. Dynamic load: 4.6 kN
Max. Frequency: 1000 Hz

Systems

UHFTS
XUD

Applications

Materials
Dampers
Fatigue
Fracture mechanics

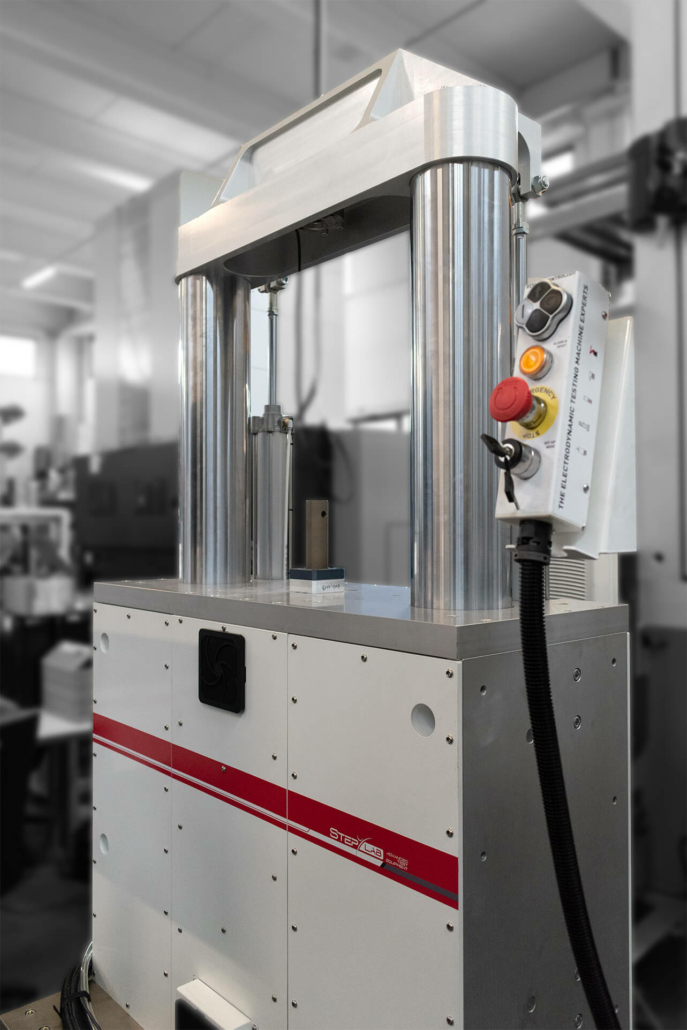

DISCOVER THE UHFTS SYSTEMS

ONE SYSTEM, MANY APPLICATIONS

UHFTS is a versatile ultra-high frequency test system designed to perform a wide range of tests, from Dynamic Mechanical Analysis (DMA) on elastomers to NVH testing on dampers. Thanks to its high resonance structure, low moving mass, and high dynamic performance, it ensures accurate force control even at frequencies up to 1000 Hz. This makes it ideal for both research laboratories and industrial validation environments, where precision, repeatability, and reliability are essential.

Features

Test frequency up to 1000 Hz
Dynamic loads up to 4.6 kN
Maximum speed of 5 m/s
Based on high-performance electrodynamic actuators
Dedicated software: automated DMA test management, frequency analysis and reporting with Test Center
High resonance structure: minimises vibrations and resonances, and allows the installation of a variety of actuators

Applications

Dynamic Mechanical Analysis (DMA)
Noise, Vibration and Harshness (NVH)
High Cycle Fatigue Tests (HCF)
Fracture Mechanics
Vibrational analysis of components

Advantages

Interchangeable actuators on the same frame: the modular design allows different actuators to be mounted on the same structure, allowing for enhanced load capacity when required.
Fully electric: no hydraulic oil, no leaks, no contamination risks.
Exceptional control accuracy: precise management of force and displacement even at 1000 Hz.
Quiet and compact operation: ideal for laboratory environments and NVH applications.
High dynamic response: perfect for characterising viscoelastic materials or testing dampers at realistic excitation frequencies.

UHFTS – TECHNICAL SPECIFICATIONS

UHFTS Specs	UHFTS-4	UHFTS-10
Max. Peak force	4.56 kN	11.40 kN
Max. Dynamic force	1.84 kN	4.60 kN
Max. Static force	1.32 kN	3.30 kN
Max. Test speed@Peak force	5 m/s	5 m/s
Max. Test frequency	1000 Hz	1000 Hz
Standard stroke	105 mm	105 mm
Cooling	Air	Air
Working temperature	5-30 °C	5-30 °C
Facility requirement	3PH 400V	3PH 400V

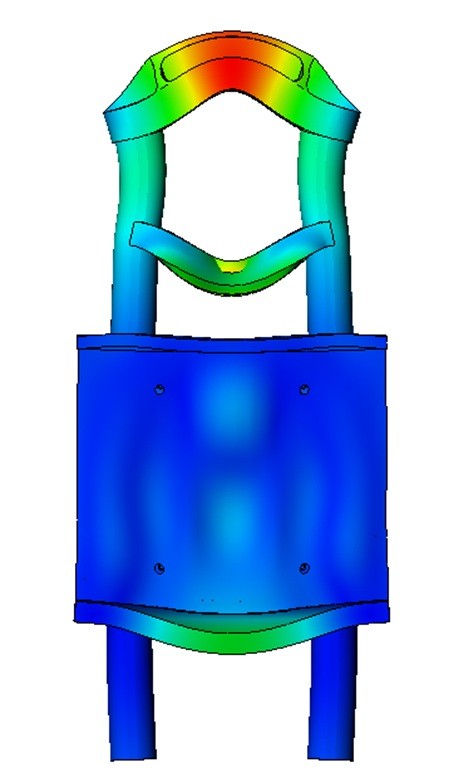

Actuator vibration mode in the load direction. Distance between crosshead and upper plane: 600mm.

The high resonance structure used allows the installation of different types of actuators, each designed to reach different frequencies and maximum loads. The systems available are:

SERIES	MAX. LOAD	MAX. FREQUENCY
UD	30 kN	250 Hz
XUD	11 kN	500 Hz
UHFTS	4,3 kN	1000 Hz

Discover the other systems

FEATURES

No maintenance

High performance

High efficiency

Wide range of use

Quick and easy installation

XUD SERIES

ULTRA-HIGH DYNAMIC TESTING SYSTEM

At STEP Lab, we have designed the XUD series to perform high dynamic dynamic tests with accelerations of up to 100 G and frequencies of up to 500 Hz, offering exceptional performance in short duration and high intensity tests.

Applications

Materials testing (Elastomers, composites, metals, etc.)
Shock absorber high dynamic tests
Characterization damper testing
High strain rate tests up to 6 m/s

Features

Closed loop control of force and displacement by Test Center control system
Reproduction of sinusoidal, triangular and custom profiles
High resolution data acquisition (24 bit)
Variable installation positions
Controller in separate and free position
Flexible programming of test sequences by Test Center graphic interface
Large variety of grips, testing tools and load cells
Integration with extensometers and climatic chambers

Advantages

Exceptional dynamic performance
Maintenance tending to zero thanks to the absence of a mechanical transmission
Low power consumption thanks to the high efficiency of the electric motor and absence of mechanical transmission
Possibility to manage up to 10 actuators in syncronised mode so as to create a 4-poster system
Flexible geometrical configuration: machine can be purchased as a linear actuator without upper crossbeam columns
Wide range of use thanks to programmable speed up to 6.000 mm/s and high stroke over 200 mm
Easy installation thanks to the request of only one electric socket and compressed air

TECHNICAL DATA

XUD SERIES	XUD05	XUD010	XUD020	XUD030
Max. Peak Force	5.50 kN	10.40 kN	20.50 kN	31.20 kN
Max. Dynamic Force	1.50 kN	2.70 kN	5.40 kN	8.10 kN
Max. Static Force	1.00 kN	2.10 kN	4.20 kN	6.30 kN
Max. Test Speed	6.00 m/s	6.00 m/s	6.00 m/s	6.00 m/s
Max. Speed at Peak Force	4.00 m/s	4.00 m/s	4.00 m/s	4.00 m/s
Max. Test Frequency	500* Hz	500* Hz	500* Hz	500* Hz
Standard Stroke	220 mm	220 mm	220 mm	220 mm
Cooling	Air	Air	Air	Air
Working Temperature	5-30 °C	5-30 °C	5-30 °C	5-30 °C
Facility Requirement	3PH 400V	3PH 400V	3PH 400V	3PH 400V

XUD010 – ULTRA-HIGH DYNAMIC DAMPER TESTING MACHINE

XUD010 is an high dynamic electric machine, dedicated to the testing of shock absorbers and dampers with a wide speed range for dynamic testing with HIL (Hardware-in-the-Loop). The linear motor, designed by STEP Lab, ensures the best performances on the market!

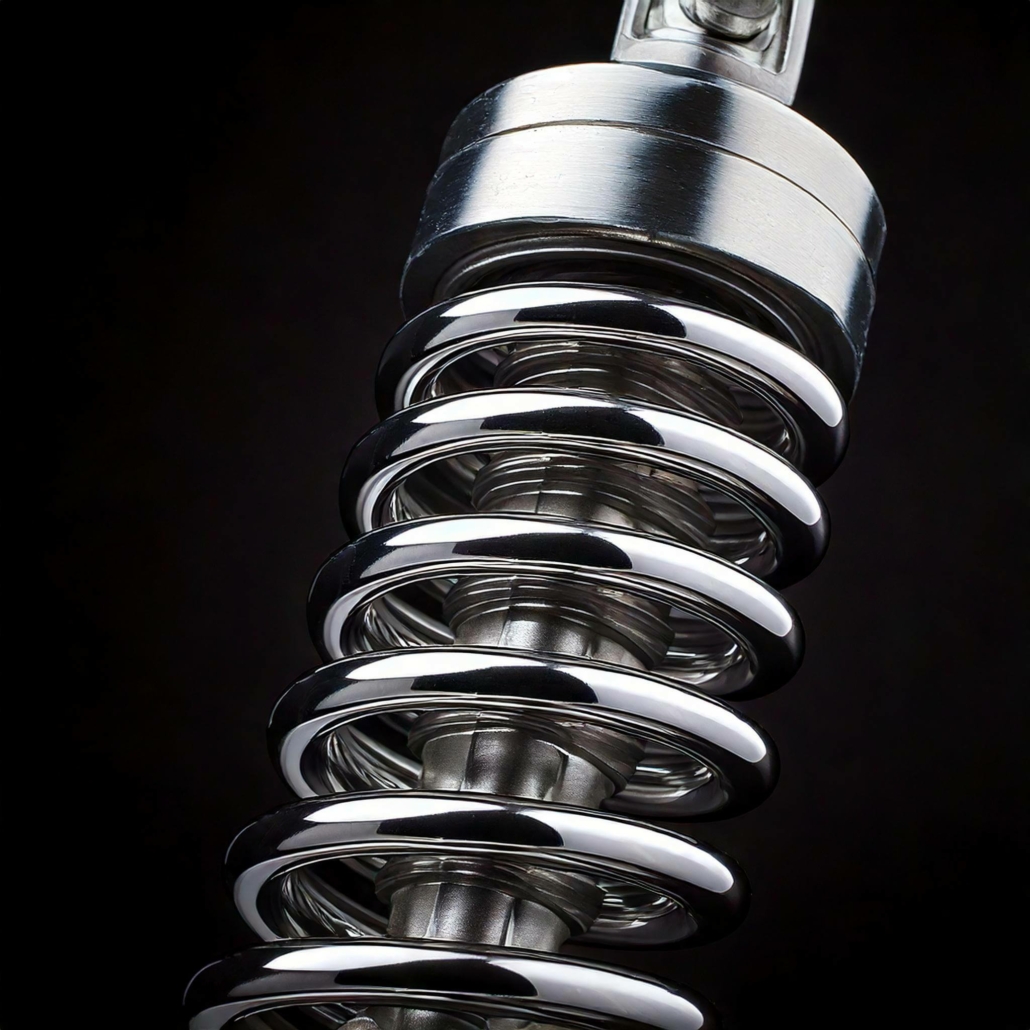

XUD for shock absobers

Explore our catalog or contact us to find the right product for your business together.
