TEST SYSTEMS FOR PROSTHESES

Brochure

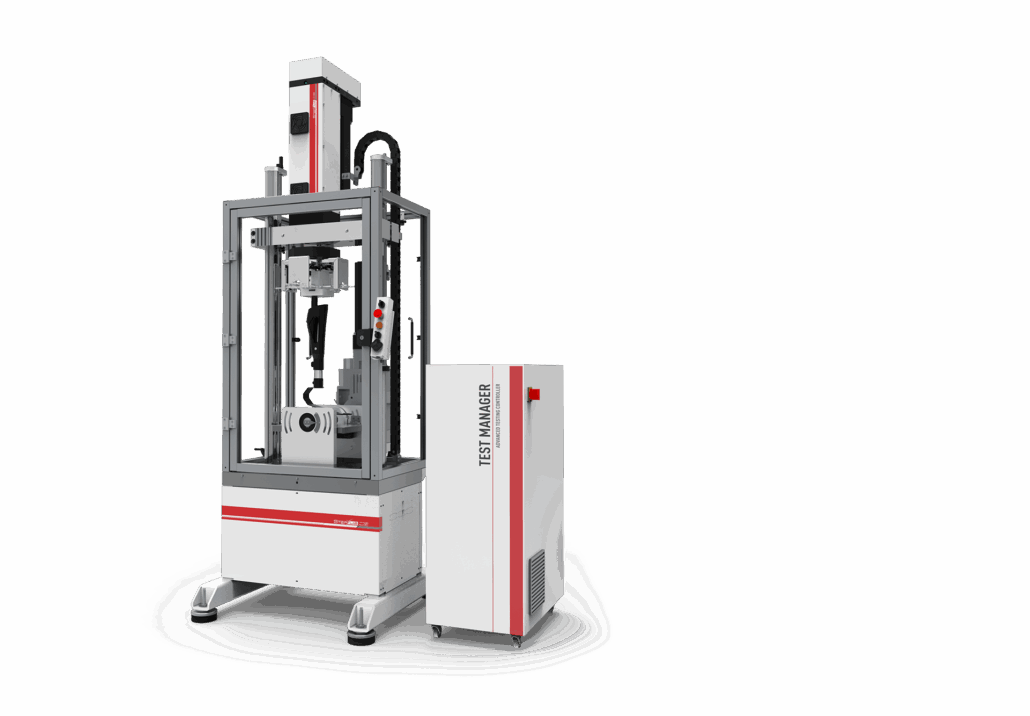

At STEP Lab, we design and manufacture testing systems for prostheses, offering a wide range of modular and customisable solutions tailored to the specific needs of each customer.

Features

Max static force: 268 kN
Max dynamic force: 200 kN
Max speed: 6.5 m/s

Key standards

ISO 10328
ISO 11491
ISO 14879-1
ISO 22675

Prostheses

Knee
Lower limbs
Hip

TEST SYSTEMS FOR PROSTHESES

Brochure

At STEP Lab, we design and manufacture testing systems for prostheses, offering a wide range of modular and customisable solutions tailored to the specific needs of each customer.

Features

Max static force: 268 kN
Max dynamic force: 200 kN
Max speed: 6.5 m/s

Key standards

ISO 10328
ISO 11491
ISO 14879-1
ISO 22675

Prostheses

Knee
Lower limbs
Hip

TESTS ON BIOMECHANICAL AND ORTHOPEDIC PRODUCTS

OUR SYSTEMS

Our systems are designed to cover a wide range of biomechanical and orthopaedic tests, with maximum precision and reliability.

Electromechanical systems (EA): perfect for long-term static and cyclic testing.
Electrodynamic systems (UD): ideal for high-frequency dynamic and fatigue testing.
Modular and customised solutions: testing systems that, thanks to dedicated accessories, can be adapted to tests on hip, knee, spine and lower limb prostheses.

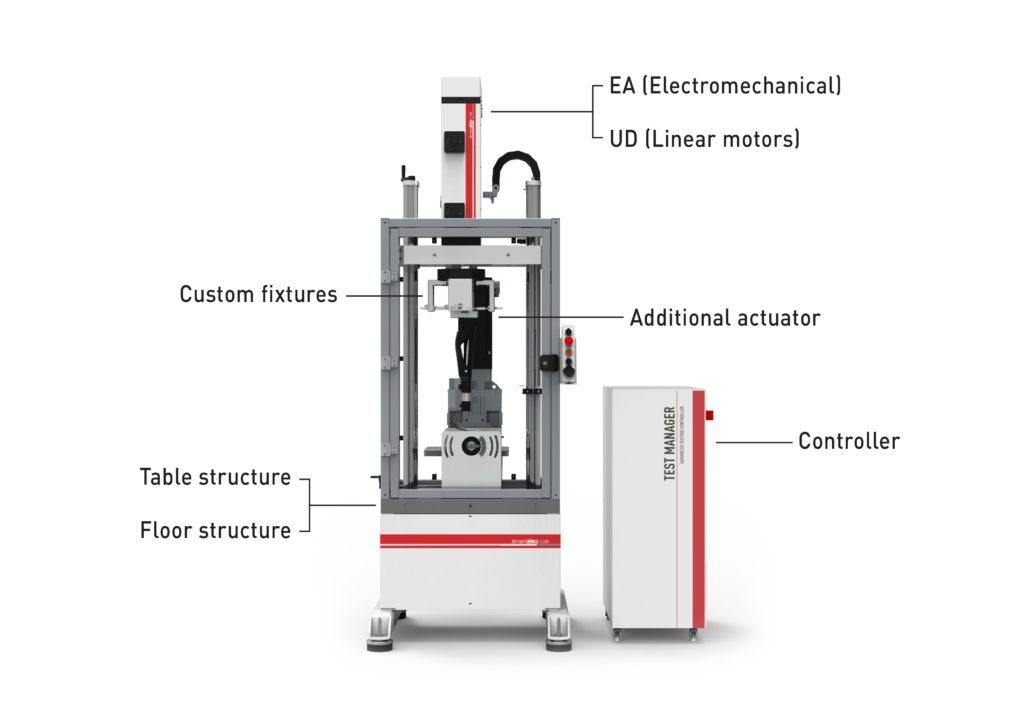

CUSTOMISABLE SYSTEMS

ACCESSORIES AND ADDITIONAL COMPONENTS

Every laboratory and company has different needs. That’s why our systems can be customised:

Actuators: available in different powers and frequencies, for static, dynamic and fatigue testing.
Accessories: clamps, supports and dedicated fixtures for every type of implant (hip, knee, bone plates, screws, ankle-foot).
Test facilities and environments: thermostatic baths to simulate physiological conditions, climatic chambers for testing in controlled environments.
Control software: simple and comprehensive interface for performing standard tests or customised procedures.

MAIN STANDARDS

Our systems support a wide range of international standards, ensuring test compliance:

Category	Key standards
Hip prostheses	ISO 7206-4, ISO 7206-6, ISO 7206-10, ISO 7206-12, ISO 7206-13, ASTM F2580, ASTM F2009
Knee prostheses	ISO 14879-1, ASTM F1800
Lower limb prostheses	ISO 10328, ISO 22675
Spinal implants	ASTM F1717, ASTM F1798, ISO 12189
Osteosynthesis (plates, screws, nails)	ASTM F382, ISO 9585, ASTM F543, ISO 6475
Coatings	ASTM F1044, ASTM F1160

FEATURES

No maintenance

High performance

High efficiency

Wide range of use

Quick and easy installation

FEATURES

No maintenance
High performance
High efficiency
Wide range of use
Quick and easy installation

EA050 – MACHINE FOR TESTS IN ACCORDANCE WITH ISO 22675

A picture is worth a thousand words: watch our EA050 electromechanical machine in action and find out how a prosthesis test is carried out in accordance with ISO 22675.

Explore our catalogue or contact us to find the right product for your company together.

Contacts Brochure

TEST SYSTEMS FOR PROSTHESES

At STEP Lab, we design and manufacture testing systems for prostheses, offering a wide range of modular and customisable solutions tailored to the specific needs of each customer.

Features

Key standards

Prostheses

TEST SYSTEMS FOR PROSTHESES

At STEP Lab, we design and manufacture testing systems for prostheses, offering a wide range of modular and customisable solutions tailored to the specific needs of each customer.

Features

Key standards

Prostheses

TESTS ON BIOMECHANICAL AND ORTHOPEDIC PRODUCTS

OUR SYSTEMS

CUSTOMISABLE SYSTEMS

ACCESSORIES AND ADDITIONAL COMPONENTS

MAIN STANDARDS

FEATURES

FEATURES

No maintenance

High performance

High efficiency

Wide range of use

Quick and easy installation

EA050 – MACHINE FOR TESTS IN ACCORDANCE WITH ISO 22675

Explore our catalogue or contact us to find the right product for your company together.
